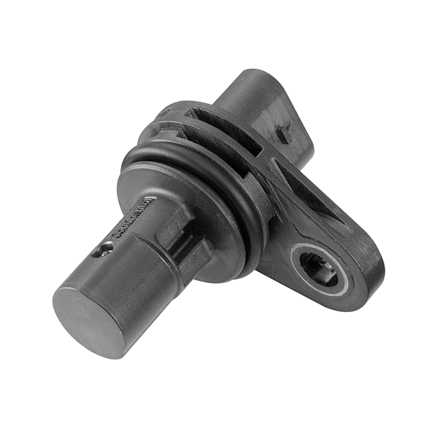

Stand-alone contactless active sensor providing exact position of the camshaft by detecting the rotation of a ferromagnetic or magnetic encoder wheel.
Output signal is used by the Engine Management System (EMS) to determine the engine position at start and to control the VVT (Variable Valve timing) actuator.
Benefits & Features
- Cost effective, flexible and customizable compact design
- “Intelligent sensor“ through full integration : patented and programmable algorithms for self-calibration and robustness to mechanical tolerances
- Rare-earth free magnet compatible
- Robust PCB-less design
- True Power On twist insensitive sensor
- High EMC / ESD robustness
- Extensive worldwide field experience
Technical Information
Magnetic sensing principle with very high position accuracy
3 pins, PWM open-drain output
regulated 5V or battery voltage
Supply voltage
-40°C to 160 °C
Temperature range
0.2 to 2.2mm
Airgap range example
0 to 4500 rpm
Speed range example
