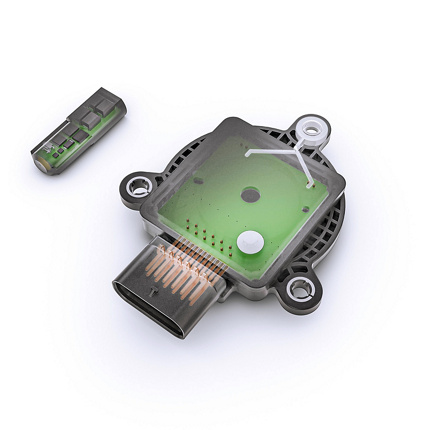

    eRTS – e-Motor Rotor Temperature Sensor

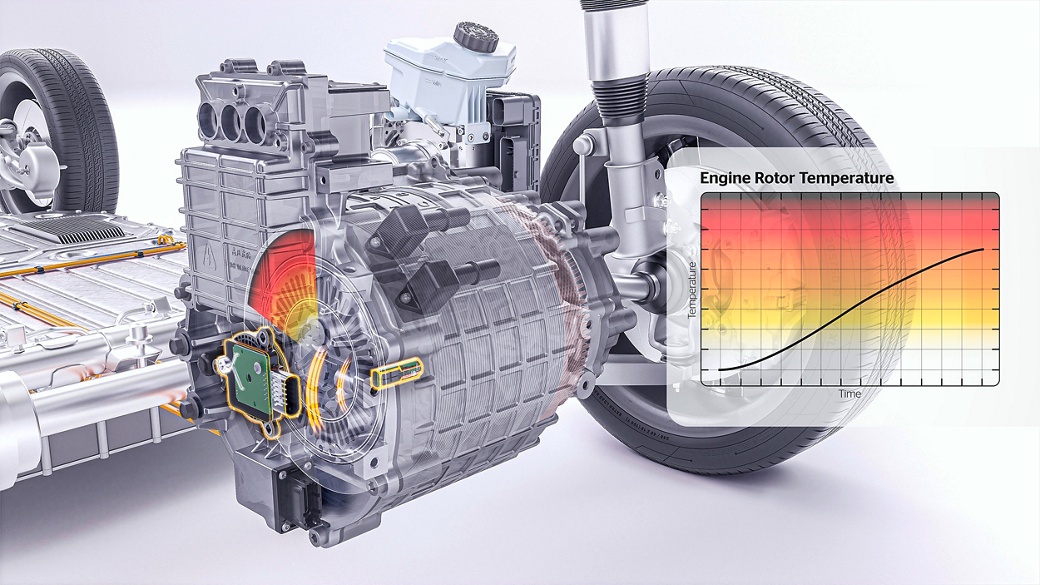

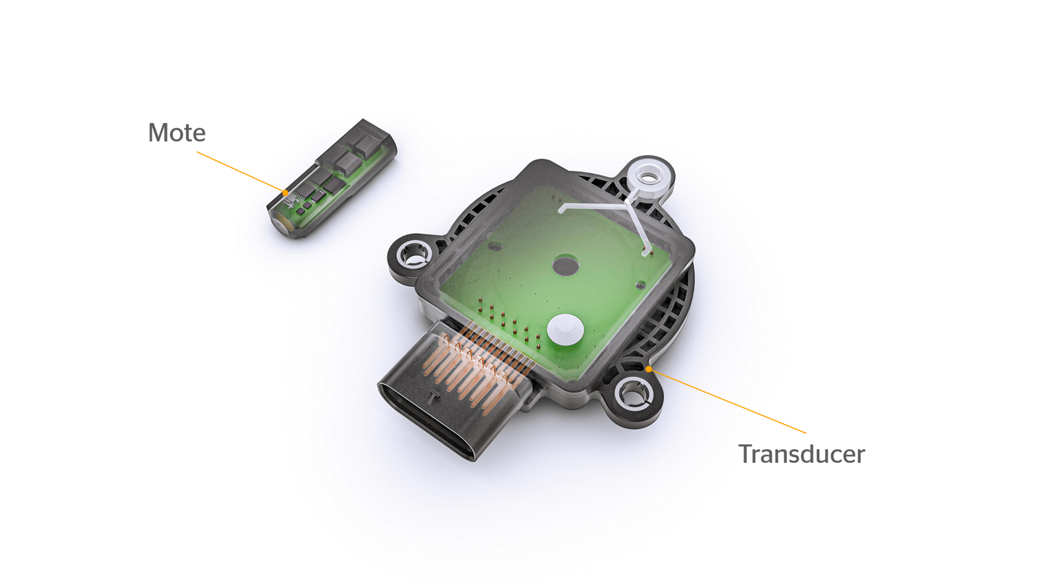

    The temperature sensor measures the rotor temperature close to magnets in e-Motors using wireless signal transmission.

    • erts-e-motor-rotor-temperature-sensor.png

    Benefits & Features

    • Accurate rotor temperature sensor (+/- 3°) to replace the current model-based approach embedded in the inverter (+/- 15 °C)
    • Cost improvement by reducing temperature grades of magnet (less rare earth elements)
    • More performance due to less derating
    • Increased reliability due to a better temperature control
    • Improved safety: more accurate torque control
    • Improved temperature “History” monitoring (cold/hot restart, etc.)

    Technical Information

    Integrated in eRPS or as a standalone product

    Signal transmission: wireless

    +/- 3 °C

    Accuracy

    < 5 s

    Response time

    Communication Interface to the vehicle: analog or digital

    4.5 V – 5.5 V

    Operating supply voltage

    -40 °C – 150 °C

    Temperature range


    Sensors for Electric Vehicles

    As the focus of global mobility increasingly shifts to electric vehicles, we have developed new and innovative solutions to further ensure the highest levels of road safety ant to improve performance. Ourunique sensors designed specifically for electric mobility protect essential components of the BEV (Battery Electric Vehicle) and increase the accuracy and efficiency of future electric mobility.

    Learn more

    Our Top Highlights

    • erss-e-motor-rotor-speed-sensor-full.png

      eRSS - e-Motor Rotor Speed Sensor

      Stand-alone, contactless, active sensor providing the speed and direction of the asynchronous motors by detecting the rotation of a ferromagnetic encoder wheel mounted on the rotor shaft.

      Learn more

      eTSS – e-Motor Transmission Speed Sensor

      Stand-alone, contactless, active sensor providing the speed and direction of the asynchronous motors by detecting the rotation of a ferromagnetic encoder wheel mounted on the rotor shaft.

      Learn more

      eRPS - e-Motor Rotor Position Sensor

      High-speed inductive rotor position sensor measuring the angular position of the rotor shaft in synchronous electric motors.

      Learn more
    • shine - 9

      Wheel Speed Sensors for Motorcycles

      The control systems for ABS, TSC, and ESC determine the wheel speed based on signals supplied by the wheel speed sensors.

      Learn more

      Transmission Speed Sensor (2-wire)

      Stand-alone, contactless, active sensor providing the speed and direction of the transmission shafts by detecting the rotation of a ferromagnetic or magnetic encoder wheel mounted on the input and output shafts.

      Learn more
