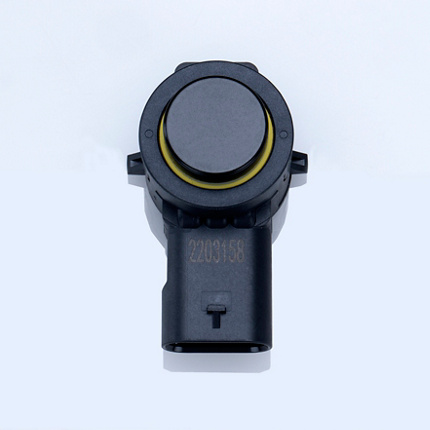

    CUS320

    CUS320 is a sensor dedicated to low-speed maneuvering situations and enables different use-cases from driver warning to automated Parking. The sensor measures the time of flight to an object (Echo-Localization principle). The time of flight is converted to a measured distance. Software for the ultrasonic signal processing (designed by Continental), interprets these measurements, and determines the appropriate actions to take. CUS320 completes our ADAS solutions portfolio and is becoming a pillar of our hardware components foundation to deliver full stack. Planned SOP with a full-stack solution is 2024.

    Read the full article on "Validation of an Ultrasonic Sensor Model for Application in a Simulation Platform" in the ATZ publication

    Benefits & Features

    • Dynamic Range Mode (DRM): Enabler for standardization
    • Parallel Signal Firing (PSF): Enabler for higher update rate
    • Coding among sensors Enabler for improved ​Self-diagnostics
    • ASIL-B compliant acc. to ISO 26262
    • Paintable

    Technical Information

    +9V …+16V​

    Supply Voltage Range

    -40 … +85°C​

    Operating Temp Range

    IP6K9K​

    IP Classification

    15.5 mm

    Diameter

    15 g

    Weight

    52 KHz.

    Frequency

    P2P or bus

    Car Connectivity

    DSI3 interface

    Car Communication

    3 or 4

    Pins per Sensor Group

    16 cm  up to 550 cm at RT

    Detection Ranges

    120° x 60°

    Field of View
