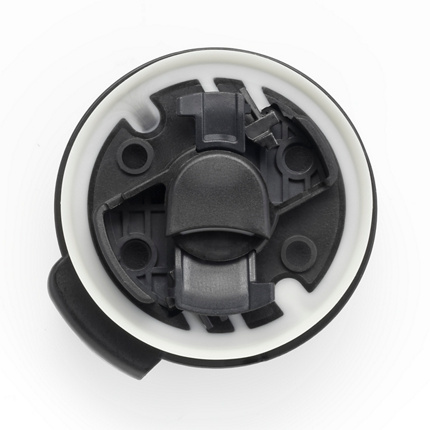

Decentralized pSAT pressure satellites were developed specifically for side crashes. They are installed in the cavity of the door and rapidly detect the change of pressure within the door, thereby reacting extremely quickly. The pressure satellite delivers excellent results also in situations such as pole crashes in which the vehicle suffers a side impact with a narrow obstacle or when the vehicle is hit by a raised bumper as it is the case with many sports utility vehicles (SUVs). The Standard Pressure Satellite pSAT dry-zone moreover, offers cost and time advantages in terms of installation: without any need for additional tools or fasteners, this satellite can be turned into place in the counterpart on the door with just a single motion, thanks to a novel mechanical concept.
Benefits & Features
- Technology and standard of a key player in the market
- Uncomplicated, fast installation – no tools needed
- Maximum protection for side impacts
- Standardized mechanical and electrical interface
- Fast and reliable crash discrimination
- Excellent misuse immunity
- Extensive worldwide field experience
- Excellent product quality (close to 0 ppm)
Technical Information
signal conditioning, sensor self diagnosis
Fully integrated solution
Protocol handling
Synchronous data transfer with 10 Bit (PSI5)
-40 up to 85°C
Temperature range
Our Sensor Highlights
