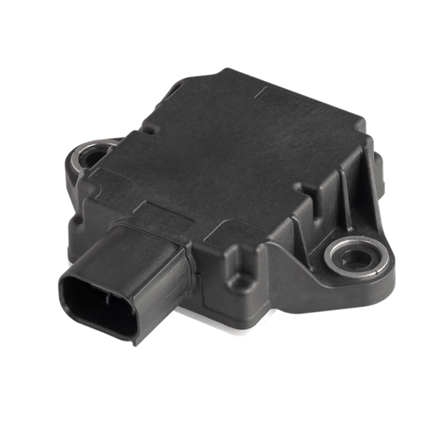

The verified signals of yaw, pitch and roll rate and longitudinal, lateral and vertical acceleration are transmitted to the data bus via standardized interface. The signals are used in complex control algorithms to enhance comfort and safety applications for passenger and commercial vehicles (e.g. ESC, ADAS, AD) as well as for motorcycles (optimized curve ABS), industry and agricultural vehicles.
Benefits & Features
- Modular concept
- Scalable up to six degrees of freedom (6DoF)
- Applicable for ESC, ADAS and AD functions
- Adaptable to automotive, motorcycle and industry markets
- Combined rate and acceleration sensors
- Enhanced sensor performance
- Minimized housing
Technical Information
Yaw/Roll/Pitch Rate ± 300˚/s
Sensing Range
± 5 g
Acceleration (x/y/z)
-40˚C to +85˚C
Temperature Range
7V ... 17V
Supply Voltage
< 150mA
Supply Current
Digital Output on CAN
4-Pin MQS
Connector Interface
62 mm
Mounting Footprint
IP6K9
Tightness
55 x 45 x 20 mm
Dimension (l/w/h)
