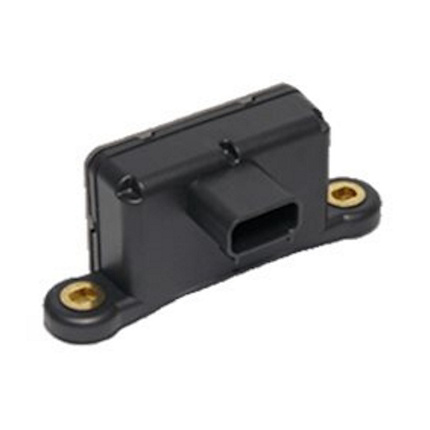

The data is processed in a single control unit. Measurement of lateral, longitudinal, vertical acceleration and yaw rate as well as inclination detection. Proven automotive design with USCAR connector and communication via CAN protocol. Universal Inertial Sensor covers all applications, except of ESC-Applications.
Benefits & Features

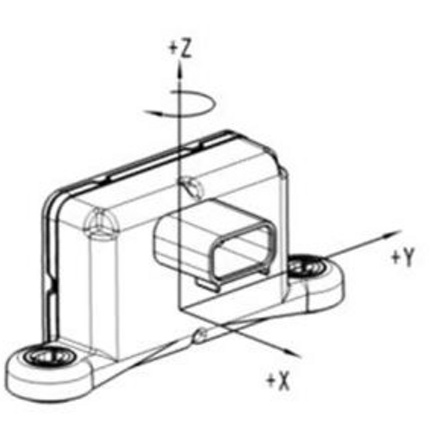

- Measurement directions in x-, y-, and z-axis
- Measurement of angular rate (z-axis)
- Measurement of lateral, longitudinal and vertical acceleration
- Distribution of measurement signals on CAN
- SAE J1939
- Lead free
Technical Information
12 V
Supply voltage
- 40 °C to + 85 °C
Operating temperature
Yaw Rate
-100 °/s ... + 100 °/s
Measurement range
z-axis
Measurement direction
0,25 °/s
Resolution
Acceleration
- 50 m/s2 ... + 50 m/s2
Measurement range
x/y/z-axis
Measurement direction
0,05 m/s2
Resolution
