Advanced Radar Sensor

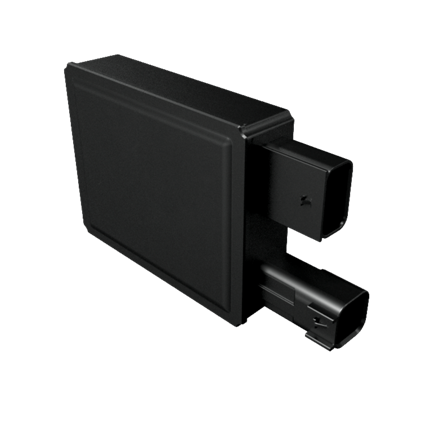

SRR600

Surround Radar Sensor

SRR600 is the next 76-81GHz SRR generation providing high performance for corner position application (incl. NCAP support) at an affordable cost. Its very small package can be easily integrated and performs robustly behind all kinds of painted bumpers. Supports various vehicle architectures with it‘s availability as smart and satellite Radar as well as flexible communication interfaces. Product family ranges from NCAP focused entry with the SRR620 to best in class premium product with the SRR630.

Benefits & Features

  • Object List / Blind Spot Warning / Lane Change Assist (Type IIIc) / Rear Cross Traffic Alert (with Braking) / Rear Pre-Crash Sensing / Occupant Safe Exit / Avoidance of Lateral Collision (Support)
  • Object List and Radar Detection Interface acc. to ISO 23150
  • Freespace and Parking support
  • High range coverage and angular accuracy
  • Elevation measurement capability
  • Blockage detection / Auto alignment / Interference Mitigation
  • Flexible interfaces (Ethernet, CAN-FD)
  • Enhanced Cyber Security Evita Full
  • Safety Integrity Level according to ISO 26262: up to ASIL-B
  • Frequency approval compliance for following core countries: European union / Russia / USA / Canada / Japan / South Korea / China / Australia

Technical Information

70 x 55 x 20 mm (w/o connector)

Dimensions

<200m (Car, Motorcycle)

Range

<100m (Pedestrian)

Range

±81°

Field of View

50 ms

Update Rate

0,007…0,081 m/s

Accuracy for speed measurement

-40° to +85° C

Temp. Range

12V (nominal)

Supply Voltage

76…81 GHz

Operation Frequency
