MultiViu® Compact 7

Platform-independent 7-inch display solution

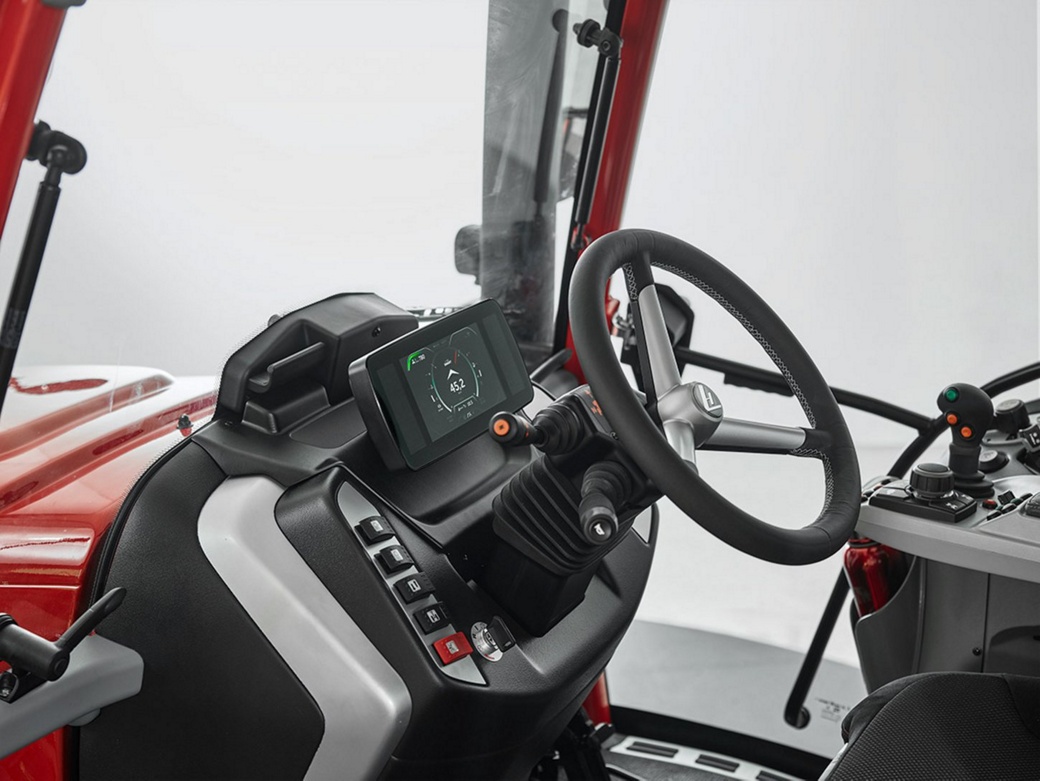

The MultiViu® Compact 7 offers manufacturers of small series a customizable instrumentation system in OEM quality at an attractive price. The primary instrumentation with a 7-inch display and optional touchscreen can be used in a variety of applications, for example in construction and agricultural machinery as well as motorcycles and minibuses.

Discover our flexible display solution MultiViu® Compact 7

Versatile use thanks to application-specific adaptations

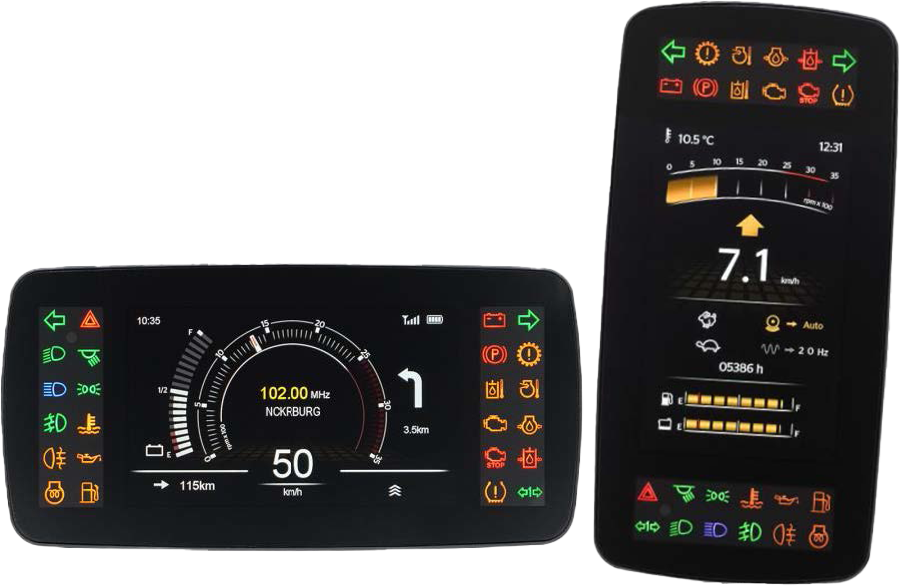

When installed horizontally, the MultiViu® Compact 7 serves as a compact alternative to the instrument cluster and displays vehicle information such as speed or fuel level. Vertically, it becomes a second device for additional, non-driving-related information and can take over the practical menu navigation.

In the version with touch display, the MultiViu® Compact 7 is reminiscent of modern smartphones – and can be operated intuitively. The manufacturer decides exactly what is shown on the display in both cases using the free programming environment. The 24 illuminated telltales on the side, which provide additional space for information, can also be freely configured. In addition, the cover glass can be customized – including a logo.

The benefits of our MultiViu® Compact 7 displays at a glance

  • Platform-independent ready-to-use solution for display units based on TFT display controllers for commercial vehicles
  • Compatible with PAL and NTSC cameras
  • Modular architecture for easy customization
  • 24 backlit display telltales
  • Simple model-based application programming with KIBES®
  • Bright, legible display even in unfavorable lighting conditions, e.g. strong sunlight
  • Scratch-resistant and robust thanks to mineral glass display and optical bonding
  • Water- and vibration-resistant
  • Blends harmoniously into the interior concept with its black, homogeneous surface
MultiViu Compact 7

Technical Specifications for our MultiViu® Compact 7

2020-02-27-mvc7_mvc7_display_s1 Kopie.jpg

Display size

Aspect ratio
15:9

Pixels
800 x 400

Luminance
800cd/m² min.

Contrast
1000:1 typ.

CAN
2

Operating voltage
12/24 V

Protection class front
IP 65

Operating temperature
-30°C to +70°C
