    The new ECU platform for Server-Zone vehicle architectures

    Zone Control Units (ZCU) reduce vehicle network complexity as well as costs by supporting centralized architectures and the increasing separation of soft- and hardware. Additionally, they are a prerequisite for continuous updates, improvements and function deployment services to support the transformation towards the software-defined vehicle.
    ZCUs enable a domain independent zonal management of vehicle functions. They consolidate functions in physical zones close to the sensors and actuators and form the middle layer between the server level of the High-Performance Computers and the individual sensors and actuators.

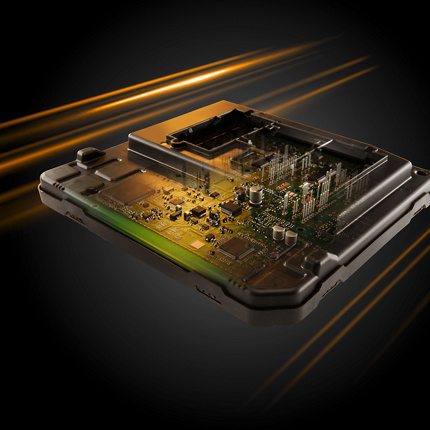

    Zone Control Unit Uniquely Exposed

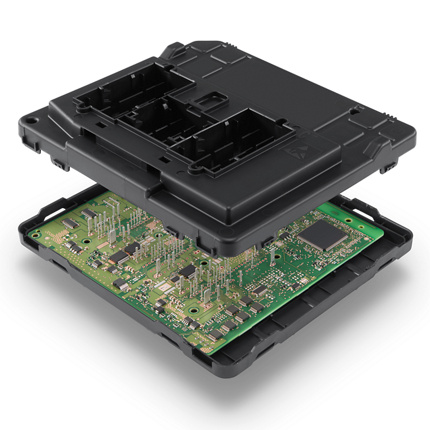

    Zone Control Unit Device Exposed

    Benefits & Features

    • Domain independent zonal management of vehicle functions
    • Inputs/Output control from sensors and actuators and other ECUs
    • Scalable Smart Power Distribution
    • Communication gateway (Ethernet, CAN/FD, LIN, ...)
    • Full support of security & safety measures (ASIL)
    • Supply of infrastructure functions (power/health management, time synchronous networking, etc.)
    • Modular and scalable platform concept to meet specific customer requirements

    Technical Information

    Backbone incl. scalable µC strategy, power supply and communication interfaces

    Ethernet interface (PHY, Switch) to server/s (HPC/s), CAN (FD)/LIN for zonal network

    Supports TSN, UDS master (in the zone)

    Standardized E/E and software modules

    Smart fusing / switching up to 40 A
