    • Power Stabilization

    DC/DC Converters stabilize the vehicle’s power net system

    For a reliable operation of all vehicle components DC/DC Converters effectively avoid voltage drops and malfunction in case of a weak battery.

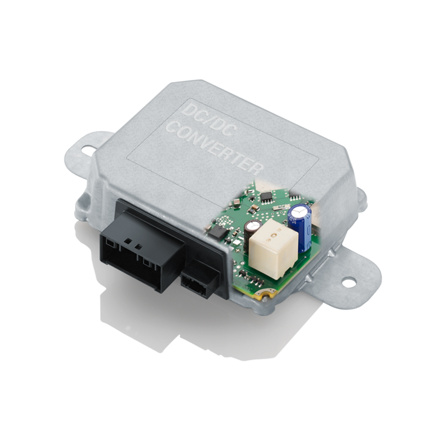

    DC / DC Converter Inside Out

    Details

    DC/DC Converters for an Optimum Energy Balance

    To ensure a reliable and safe operation of all vehicle components it is important to avoid voltage drops. Especially if the engine is started or re-started the voltage of the electrical system drops, causing disruptions in the operation of radio, navigation or smartphone.

    DC/DC Converters stabilize the power supply for selected loads during the engine cranking in start-stop systems. It buffers voltage drops and avoids malfunction  in case of a weak battery.

    Benefits & Features

    • Scalable power classes (200 - 400 W)
    • Diagnosis interface via CAN, LIN or Pulse-width modulation
    • Communication interface via CAN or LIN
    • Integrated terminal 30 By-pass
    • Short circuit protection
    • Terminal overload protection
    • Voltage ramp-in and ramp-out
    • Prediction of re-cranking possibility (dynamic temperature behavior)
    • Modular, scalable design to deploy different classes
    • Smaller and lighter than two-battery electrical power system

    Technical Information

    6 V – 16 V

    Supply voltage in the range

    6 V – 26 V

    Input voltage range

    10.5 – 14 V with a resolution of 0.5 V

    Stabilization of output voltage

    12 V +/– 0.5 V

    Second supply-terminal

    –40 – +85 °C

    Temperature range
