    CBCU5 is a generic control unit to cover all types of functional requirements for trucks, minibuses and special vehicles.

    Discover our body control unit CBCU5

    Reliable, robust and generic controllers

    CBCU5 meets the growing demand for reliable and powerful onboard control units by centralizing intelligence and input/output management of cabin and body in just one device.

    CBCU5 not only stands for great reliability and robustness, but also for a high potential for reducing cable harnesses, connectors, relays and fuses. It can be connected with up to four nodes via a powerful multiplex CAN connection. It can also be connected to instrument clusters such as the MultiViu® Professional 12 Generation 2 or the MultiViu® Compact 7 via an instrument CAN.

    As a generic body control unit, CBCU5 offers a 12/24V LIN interface for cost-optimized communication between actuators and sensors in the vehicle. The device was developed in accordance with ISO 26262 and supports applications up to ASIL B level.
    CBCU Unit

    The benefits of the CBCU5 body controller at a glance

    • Central body control unit for generic applications
    • Computing power and various inputs and power outputs combined in one compact device
    • Improved network functionality with up to 4 MUX5-B nodes
    • Application programming via KIBES® LC3 (IEC 61131-3)
    • Supports application functions up to ASIL B according to ISO 26262

    Technical specifications

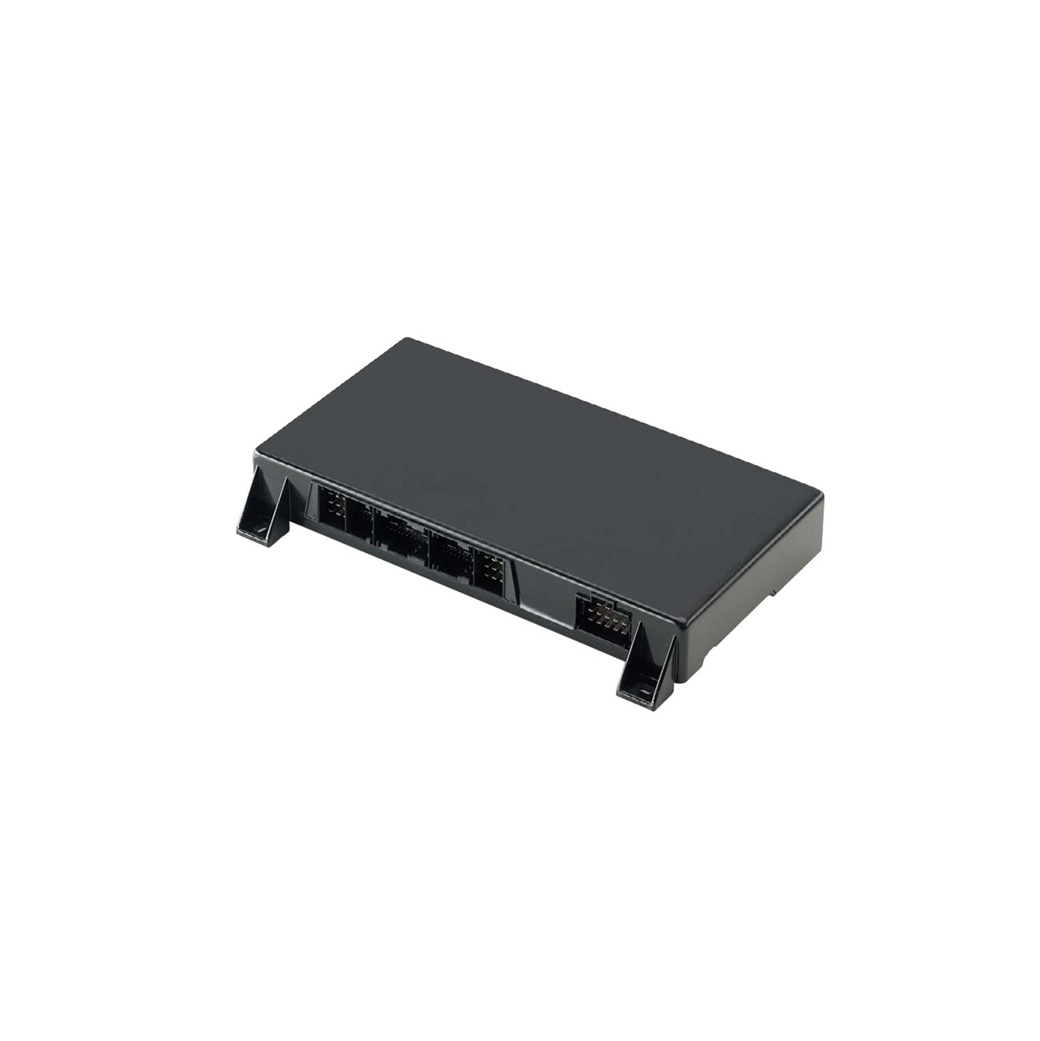

    Image of a black control unit

    Dimensions
    252 x 190 x 43 mm

    Nominal voltage
    12 V/24V

    Operating temperature
    -40°C to +85°C

    Protection class
    IP40

    56 Digital inputs
            25 x High, 1,6mA (6 w/ wake up; 2x         ASIL A, 3x ASIL B)

            17 x configurable, 1,6mA (2x ASIL B)

            8 x configurable, 5 mA (2x ASIL B)

            6 x configurable, 8 mA (2x ASIL B)



    Analog inputs
    4  configurable (2x ASIL B)

    8 x CAN

            (7 flexible CAN, 1 w/ MCAN for MUX5-        B, DCAN)

            CAN Gateway individual         programmable

            Diagnosis & EOL programming via         UDS on CAN

    22 Outputs high side

            4 x 0,2A High-Side (2x ASIL A, 2x         PWM)

            10 x 1A High-Side (2x ASIL B, 5x         PWM)

            2 x 2A High-Side (2x ASIL B , 2x         PWM)

            6 x 3A High-Side (6x ASIL B)

    4 Outputs half-bridge  5.0A

    2 Sensor supply outputs

            (200 mA @ 12 V; 100 mA @ 5V



    Further product highlights

    KIBES ZR5A.jpg

    Body Controller ZR5-A

    Powerful generic controller

    Learn more
    2024-10-CONSMY-PPT-gvcu-OTS ip67neu.png

    Generic Vehicle Control Unit

    The generic Vehicle Control Unit enables the customer to manage quickly all drive train configurations without high development efforts.

    Learn More

    MUX5-B Multiplex Node for the Cabin

    Powerful generic multiplex node

    Learn more

    MultiViu® Compact 7

    Digital instrumentation for special vehicles, minibuses and motorcycles

    Learn more
