    Body Controller ZR5-A

    The central controller ZR5-A is an intelligent and powerful gateway controller.

    KIBES ZR5A Kopie.jpg

    Discover our ZR5-A controller

    The central, intelligent and powerful controller with gateway functionality for on-board electronics

    As a body controller, the ZR5-A can be expanded with the MUX5-B multiplex nodes and communicate with them via CANs. It also offers an efficient and powerful CAN structure for connecting various instrument clusters and driver's workplaces.

    To achieve maximum flexibility, all CAN communication is based on generic objects and interfaces with a flexible data rate. The ZR5-A also offers a central gateway for EOL programming and diagnostics. The application is created by our customers using the model-based programming tool KIBES® LC3. The device is designed in accordance with ISO 26262 and supports application levels up to ASIL B.

    The benefits of the ZR5-A controller at a glance

    • Generic central computer for general purpose
    • Complex gateway functionality
    • Central gateway for EOL programming & diagnosis
    • Up to 18 nodes
    • Application programming via KIBES® LC3 Tool logi.CAD 3 (IEC 61131-3)
    • Supports ISO 26262 up to ASIL B
    Body Controller ZR5A

    Technical Information for ZR5-A controller

    ZR5A

    Multiplex nodes
    max. 18

    Dimensions
    162 x 165 x 30mm

    Nominal voltage
    12 V/24 V

    Operating temperature
    -40°C to +85°C

    Protection class
    IP40

    CAN interfaces
    8

    Generic CAN objects (protokol J 1939)
    4

    Multiplex CAN to MUX5-B
    3

    Diagnostics CAN
    1

    Digital inputs (level programmable, 4 wake-up capable)
    8

    Outputs low side, 0.1A
    9

    2 LIN
    12 V

    Inputs
    Digital, CAN, LIN

    Prepared
    Ethernet (BroadR-Reach)

    Diagnostics protocol
    UDS to D CAN

    Frequency inputs
    Speed, RPM

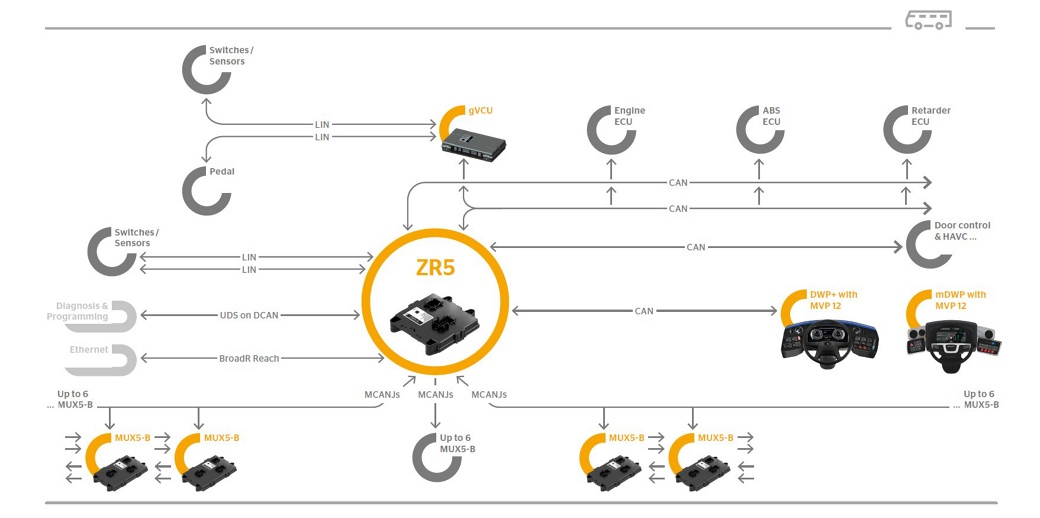

    Typical control architecture for commercial vehicles

    The system can cover almost any solution with the ZR5-A central computer. A huge number of functions can be realized with up to 18 MUX5-B nodes. It is also possible to combine various driver's workplaces and instrument clusters with the body controller. The ZR5-A has complex network connectivity with several generic CANs, which can be programmed to customer specifications.
    Steuerungsarchitektur für Nutzfahrzeuge

    Further product highlights


    MUX5-B Multiplex Node for the Cabin

    Powerful generic multiplex node

    Learn more
    Generic Vehicle Control Unit.jpg

    Generic Vehicle Control Unit

    The generic Vehicle Control Unit enables the customer to manage quickly all drive train configurations without high development efforts.

    Learn More
    Image of the two variants of the MultiViu® Professional 12 Generation 2 instrument cluster. The Modern variant is shown on the left without an additional installation frame and the Classic variant with an installation frame is shown on the right. The display depicts various driving information.

    MultiViu® Professional 12 Generation 2

    Instrument cluster with 12.3-inch color display and maximum design freedom

    Learn more
